accQcomm Interface Module

Section 2 Installation and Operation

2-2

2.2 Site Setup Begin creating a site file for the flow meter(s) connected to the

accQcomm by clicking the Site tab (Figure 2-1) and enter the

desired Site Name.

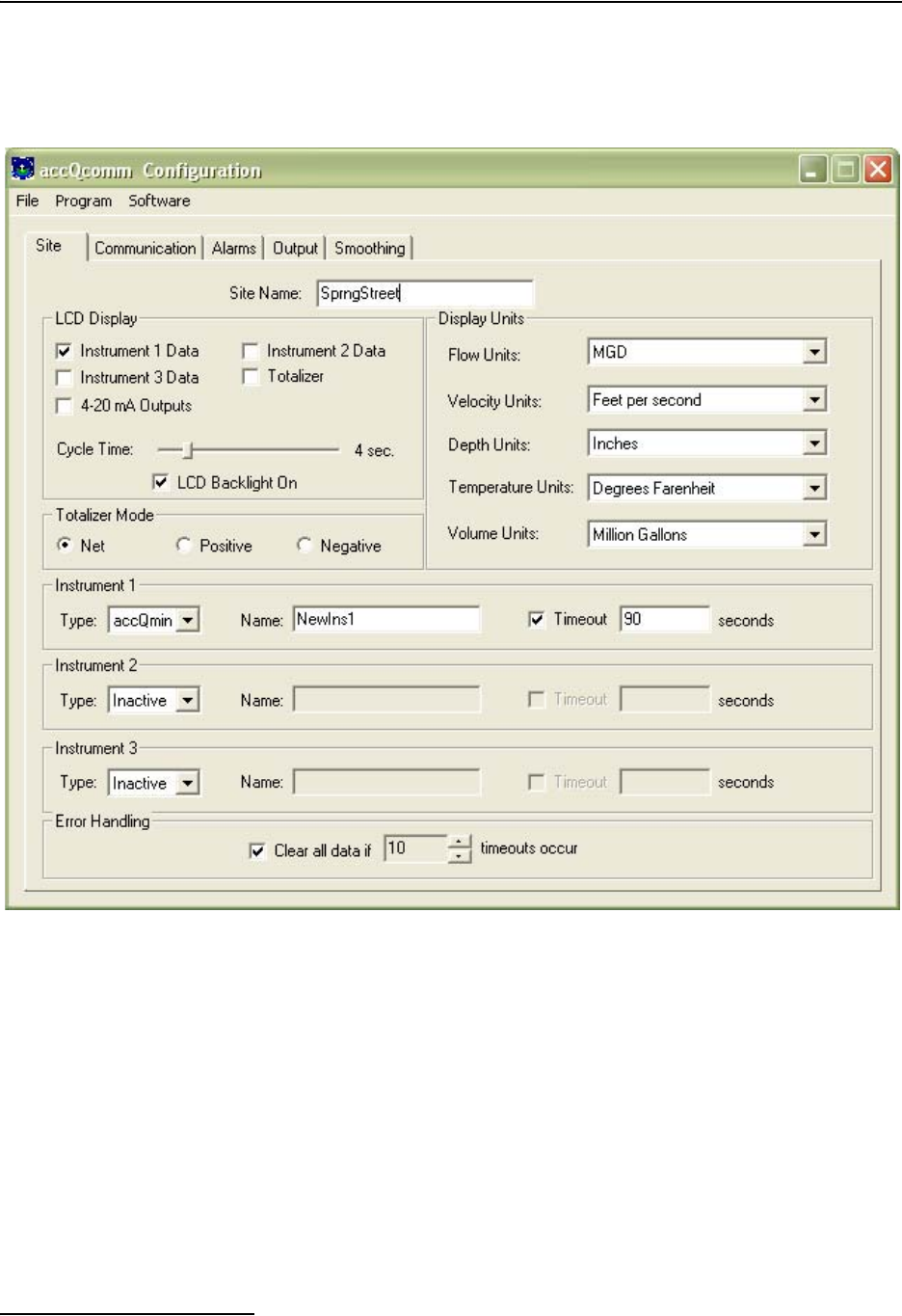

Figure 2-1 Site tab

2.2.1 LCD Display The accQcomm’s LCD can be configured to display several dif-

ferent types of information. These include: System Information

(device name, firmware, and date/time), data output for each flow

meter (flow, velocity, level, temperature, and volume, in user

selectable units), 4-20 mA outputs, and totalized flow. These dis-

plays, except for System Information, can be switched on or off,

and will cycle through all displayed parameters every 3 to 10

seconds, as set by dragging the slider bar.
